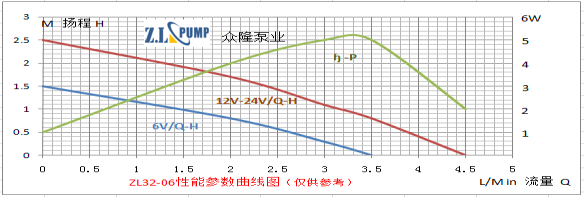

Model | ZL32-06 | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0-2W / 12V: 0-5W / 24V: 0-5W | ||||||||
Static Water Head | 0-2.5 M | ||||||||
Static Flow Rate | 0-4.5 L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable both on land (Non-Submersible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <35dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature≤70℃ | ||||||||
Application | Solar water circulation system, small fountain, aquarium, water bed/mattress, cushion, etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remarks | |||||
Length（mm） | Width（mm） | Height（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Inlet and outlet with non-slip insert | ||
46 | 46 | 58 | IP67 | φ17 | φ12 | φ10 | φ5 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
